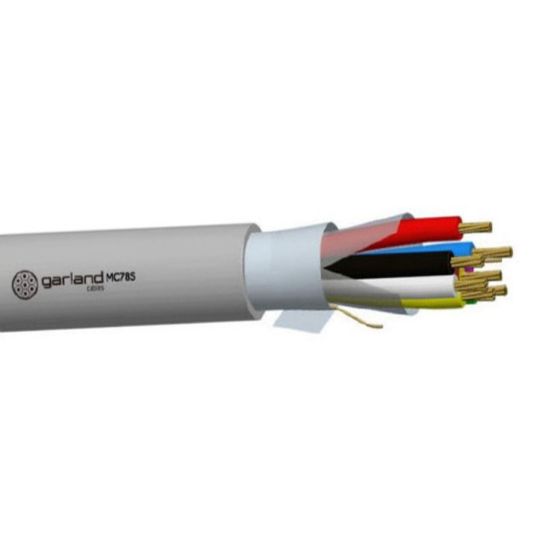

Garland 0.22mm 8 Core Grey Data Cable Overall Screened PVC/PVC

Description

Data Cable, 0.22 mm, Tinned Annealed Copper, 8 Core, 7/0.2 mm Strands, Overall Screened Screen, 5.9 mm Overall Diameter, 59 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.7 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 123 N Pulling Tension, >12 MPa Tensile Strength, DC: 93.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Yellow/Red/Black/White/Brown/Green/Violet/Blue Core, PVC Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/CA S008 EIA-RS232 AS 1049 UL 758

Key Specifications

Barcode (EAN-13)	9329849002817
SKU	GARMC78S500
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC78S500
Bend Radius	Static 59 mm
Conductor Resistance	DC: 93.3 Ohm/km
Conductor Size	0.22 mm
Conductor Type	Tinned Annealed Copper
Core Colours	Yellow/Red/Black/White/Brown/Green/Violet/Blue
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Resistance	50 MOhm/km
Insulation Material	PVC
Insulation Thickness	0.28 mm
Number of Cores	8 Core
Overall Diameter	5.9 mm
Pulling Tension	123 N
Screen Coverage	100%
Screen Format	Overall Screened
Screen Material	Aluminium/Polyester Tape
Sheath Colour	Grey
Sheath Material	PVC
Sheath Thickness	0.7 mm
Temperature	-15 to 70 deg C
Standards	AS/CA S008 EIA-RS232 AS 1049 UL 758
Stranding	7/0.2 mm
Tensile Strength	>12 MPa
