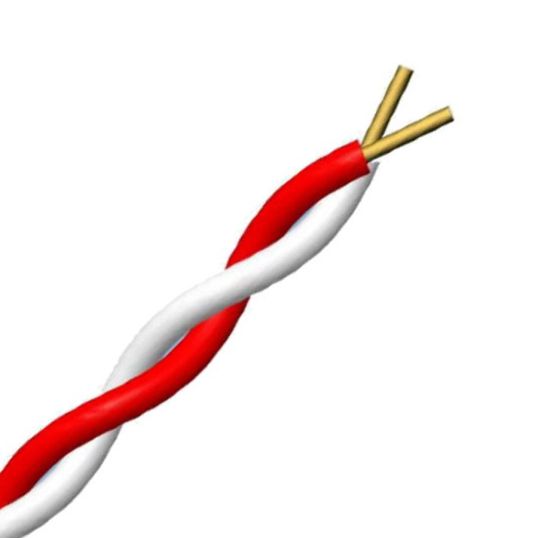

Garland 6mm 2 Core Jumper Wire PVC

chevron-left
loader
Loading...

Description

chevron-down
Jumper Wire, 6 mm, Annealed Copper, 2 Core, 1/0.5 mm Strands, 1 mm Overall Diameter, 0.25 mm Insulation Thickness, DC: 93.8 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, V-75 PVC Insulation, Red/White Insulation, Unsheathed, -15 to 75 deg C, AS/ACIF S008

Key Specifications

chevron-down
Barcode (EAN-13)
9329849006310
SKU
GARJW15RDWH250
Brand
Garland
Product Type
Jumper Wire

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 250
UNSPSC Class 26121600
UOM MTR
Vendor Product JW15RDWH250
Conductor Resistance DC: 93.8 Ohm/km
Conductor Size 6 mm
Conductor Type Annealed Copper
Insulation Colour Red/White
Insulation Resistance 50 MOhm/km
Insulation Material V-75 PVC
Insulation Thickness 0.25 mm
Number of Cores 2 Core
Overall Diameter 1 mm
Sheath Material Unsheathed
Temperature -15 to 75 deg C
Standards AS/ACIF S008
Stranding 1/0.5 mm
