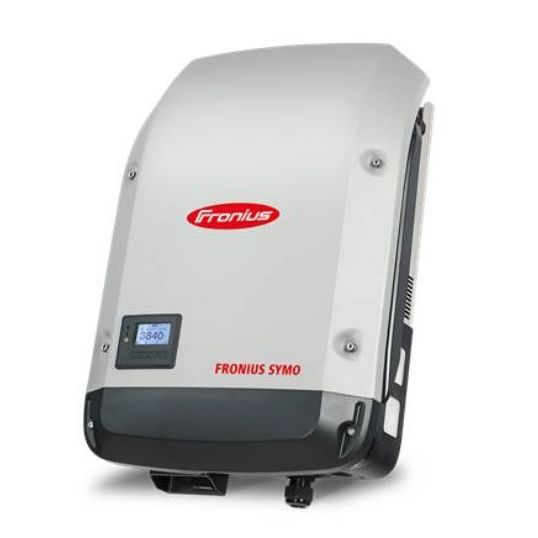

Fronius Symo Solar Inverter Transformerless 2MPPT Three Phase 5kW 16A

Description

Solar Inverter Grid-Connected, 3 Phase, 150-1000 Volt DC Input, 595 Volt DC Nominal, 163-800 Volt DC MPPT Voltage Range, 200 Volt DC Start-up, 16 Amp Max. Input, 2 MPPTs, 5 kW Output, 5000 VA Max. Apparent, 50/60 Hz, 7.2 Amp Output, 0.85-1 Inductive/Capacitive Power Factor, < 3% Harmonic Distortion, 98% Efficiency,, Transformerless, 2.000 mtr/3.400 mtr Max. Altitude, WLAN/LAN, USB (Type A Socket), 2x RS422 (RJ45 Socket), RS485, Regulated Air Cooling, IP65, -25 to 60 deg C, 0-100% Relative Humidity, 431 mm Width, 19.9 kg

Key Specifications

SKU	FRNSYMO5.0-3-M
Brand	Fronius
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	14
UNSPSC Class	26111600
UOM	EA
Vendor Product	SYMO5.0-3-M
AC Operating Frequency	50/60 Hz
AC Max. Apparent Power	5000 VA
AC Output Current	7.2 Amp
AC Output Power	5 kW
Communication Port	WLAN/LAN/USB (Type A Socket)/2x RS422 (RJ45 Socket)/RS485
DC Input Voltage	150-1000 Volt
DC Max. Input Current	16 Amp
Cooling Method	Regulated Air
DC MPPT Voltage Range	163-800 Volt
DC Nominal Voltage	595 Volt
DC Start-up Voltage	200 Volt
European Weighted Efficiency	97.30%
IP Rating	IP65
Efficiency	98%
Number of MPPTs	2
MPPT Efficiency	> 99.9%
Operating Temperature	-25 to 60 deg C
Phase	3 Phase
Power Factor	0.85 -1 Inductive/Capacitive
Relative Humidity	0-100%
Topology	Transformerless
Width	431 mm
