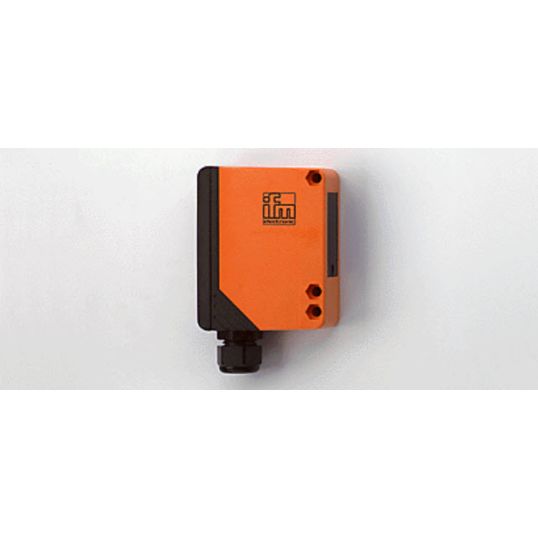

Efector Photoelectric Switch Diffuse Reflection M16x1.5 PPO Modified 10/36VDC PNP/NPN/Light-On/Dark-On Programmable

Description

Photoelectric Switch, Rectangular, Diffuse Reflection, Sensing Range: 5-1500 mm, PNP/NPN/Light-On/Dark-On Programmable, 10/36 Volt DC, LED, M16 X 1.5, 4.5-10 mm Diameter, IP65, PPO Modified, -25 to 60 deg C, 90 mm Height, 30 mm Width, 70 mm Depth

Key Specifications

SKU	EFFOA5108
Brand	Efector
Product Type	Photoelectric Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Very long range Intuitive setting of sensitivity and duration of switching delay Programmable light-on/dark-on mode With function check output to signal soiling or maladjustment LED display to check operation, switching status and function
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	OA5108
Depth	70 mm
Cable Size	4.5-10 mm Diameter
Height	90 mm
IP Rating	IP65
Output Function	PNP/NPN/Light-On/Dark-On Programmable
Material	PPO Modified
Light Source	LED
Operating Voltage	10-36 Volt DC
Sensing Method	Diffuse Reflection
Sensing Range	5-1500 mm
Temperature	-25 to 60 deg C
Shape	Rectangular
Terminal Connection	M16 X 1.5
Width	30 mm
