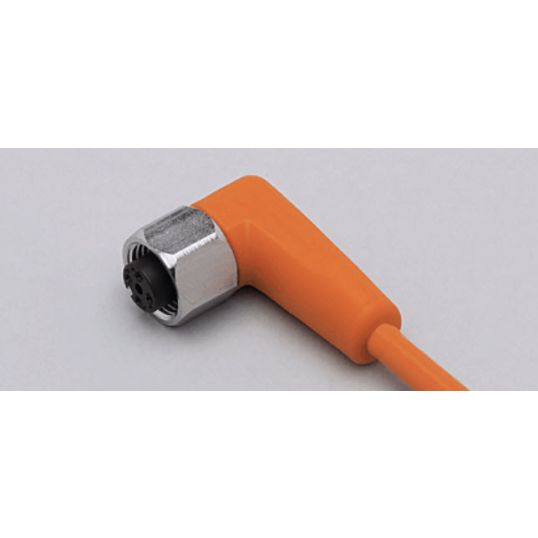

Efector M12 5 Pin Sensor Connector Angled Socket 5m L <250V/<300VDC

Description

Sensor Connector, <250 Volt AC/<300 Volt DC, 4 Amp, 5 mtr, Angled Socket 5 Pin Connection, M12x1 Connection, IP65/67/68/69K, PVC, -25 to 100 deg C, 15.5 mm Width, 26.5 mm Height, 36.5 mm Depth

Key Specifications

SKU	EFFEVT004
Brand	Efector

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For use in hygienic and wet areas in the food industry Permanent, reliable sealing even when mounted without tools Large operating temperature range and high protection rating Vibration and shock resistant thanks to coupling ring with locking mechanism Mechanical end stop to protect the O-ring from destruction
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	EVT004
Cable Size	5 mtr
Current	4 Amp
Connection Type	Angled Socket 5 Pin
Depth	36.5 mm
Connection Size	M12x1
Height	26.5 mm
IP Rating	IP65/67/68/69K
Material	PVC
Temperature	-25 to 100 deg C
Product Type	simple
Voltage	<250 Volt AC/<300 Volt DC
Width	15.5 mm
