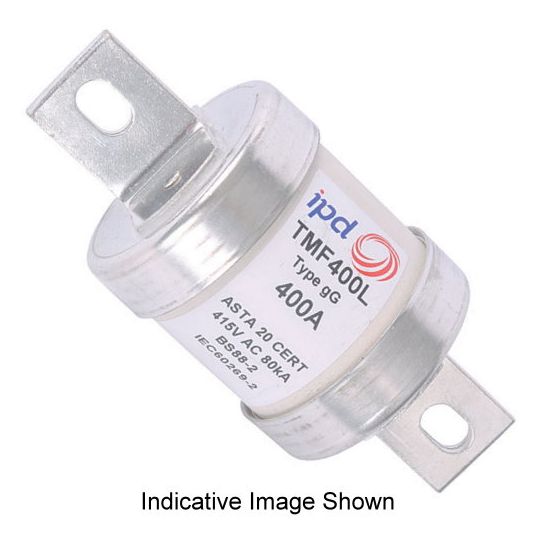

IPD Fuse Link HRC 2 Hole Fixing Bolt In Centre Motor Rated 400 Amp 415VAC 80 kA Class gG BS88 Type B4
Loading...
Description
Fuse Link HRC Bolt In Centre 2 Hole Fixing, 415 VAC, 400 Amp, Class gG, Interrupt Capacity: 80 kA, 111mm Fixing Centres, Bolt In Centre Motor Rated Tag, 59mm Diameter x 138mm Length, BS88 Type B4
Key Specifications
| Barcode (EAN-13) |
9322017011468
|
|---|---|
| SKU |
EEFTMF400L
|
| Brand |
IPD
|
| Range Name |
Red Spot
|
| Product Type |
Fuse Links HRC
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | TMF400L |
| Dimensions | 59 mm Diameter x 138 mm Length |
| Current | 400 Amp |
| Fixing Centres | 111 mm |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type B4 |
| Utilisation Category | Class gG |
| Tag Type | Bolt In Centre Motor Rated |
| Voltage | 415 Volt AC |
