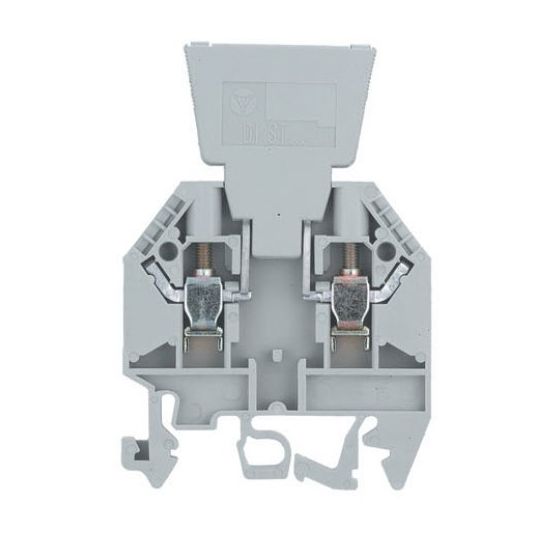

Edward Keller Disconnect Terminal Block Screwed 2 Wire 1 Level 4mm Grey Thermoplastic

Description

Disconnect Terminal Block, 800 Volt, Rated Surge Voltage: 6 kV, 4mm Conductor, 2 Conductors, Wire Strip Length: 9 mm, Tightening Torque: 0.5 N/m, Wiring Format: 2 Conductor Through, 1 Level, Screw Terminal, DIN Rail Mount, TS 35, TS 32 Rail, Insulation Material: Thermoplastic, Grey, Flammability: V0, Height: 76 mm, 48 mm Width, 6 mm Depth

Key Specifications

SKU	EDK57.504.4055.0
Brand	Edward Keller
Product Type	Disconnect Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For fuse holder
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	57.504.4055.0
Colour	Grey
Conductor Size	4.0mm
Flammability	V0
Depth	6 mm
Height	76 mm
Insulation Material	Thermoplastic
Number of Levels	1
Number of Conductors	2
Mounting Method	DIN Rail - TS 35 - TS 32 Rail
Rated Surge Voltage	6 kV
Terminal Type	Screw
Tightening Torque	0.5 Nm
Voltage Rating	800 Volt
Width	48 mm
Wire Strip Length	9 mm
Wiring Format	2 Conductor Through
