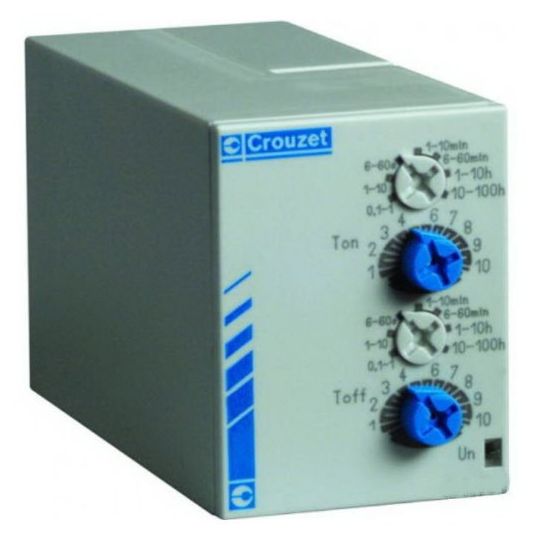

Crouzet Time Delay Relay Analogue Surface Mount 1CO Multifunction 0.1s-100Hr 24VDC/24-240V

chevron-left
loader
Loading...

Description

chevron-down
Time Delay Relay Analogue, 24 Volt DC/24-240 Volt AC, 8 Amp, 2000 VA/80 Watt, 1 Pin1, 1CO, Timing Function: Multifunction, Timing Range: 0.1 sec-100 hr, 100000 Electrical, 5000000 Mechanical Cycles, Surface Mount, IP20, IP40, IP50, Body Self-Extinguishing, -20 to 60 deg C, 45 mm Height, 35 mm Width

Key Specifications

chevron-down
SKU
CRZPU2R1
Brand
Crouzet
Product Type
Time Delay Relays

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Multi-function or mono-function
  • Multi-range
  • Multi-voltage
  • Relay output 1 or 2 : 8 A - 250 V (10 A UL)
  • LED status indicator
Standard Pack Size 1
UNSPSC Class 39122300
UOM EA
Vendor Product PU2R1
Contact Configuration 1 Changeover
Current 8 Amp
Height 45 mm
Mounting Method Surface
IP Rating IP20/40/50
Operating Cycles 100000 Electrical/5000000 Mechanical Cycles
Pin Configuration 11 Pin
Power Rating 2000 VA-80 Watt
Temperature -20 to 60 deg C
Timing Function Multifunction
Timing Range 0.1 Second-100 Hours
Voltage 24-240 Volt AC/24 Volt DC
Width 35 mm
