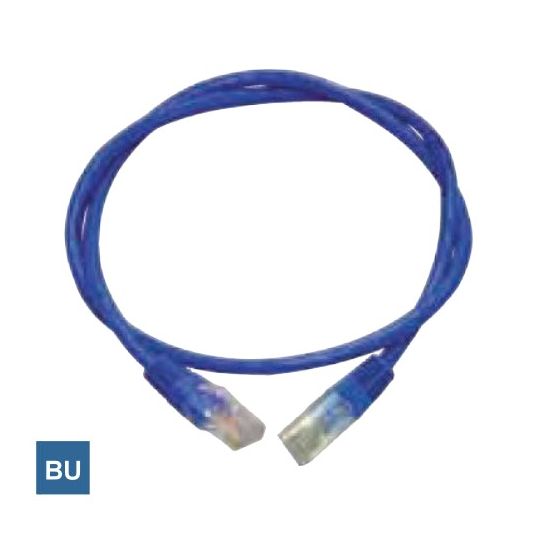

Clipsal Actassi UTP Patch Cord Cat5e RJ45-RJ45 4 Pair PVC Blue 0.5M

Description

UTP Patch Cord Cat5e, Maximum 150 Volt AC, Maximum 1.5 Amp, Connector A: RJ45 Plug, Connector B: RJ45 Plug, 0.5 mtr Cord, Maximum: 10 mOhm Contact Resistance, Maximum: 1 mOhm Insulation Resistance, 2 Conductors, 100 mHz Bandwidth, 100 VRMS at 60 Hz for 1 min Dielectric Strength, 1000 Mating Cycles Durability, Wiring Scheme: 568A, 4 Pair, Phosphor Bronze Contact, PVC Insulation, Polycarbonate Plug Boot, Blue Sheath, Individually Colour Coded with Filler

Key Specifications

Barcode (EAN-13)	9311554715731
SKU	CLIRJ5/05PLBU
Brand	Clipsal
Product Type	Cat5E Patch Cord

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Moulded RJ45 plugs ensure stable performance UL CMR fire rated jacket Strain relief boot Snag free design
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	RJ5/05PL-BU
Connector A	RJ45
Connector B	RJ45
Contact Material	Phosphor Bronze
Contact Resistance	Maximum: 10 mOhm
Cord Length	0.5 mtr
Current	Maximum 1.5 Amp
Durability	1000 Mating Cycles
Dielectric Strength	100 VRMS at 60 Hz for 1 min
Frequency Bandwidth	100 mHz
Insulation Material	PVC
Insulation Resistance	Maximum: 1 mOhm
Number of Conductors	2
Pair Count	4 Pair
Please Note	Individually Colour Coded with Filler
Plug Boot Material	Polycarbonate
Sheath Colour	Blue
Voltage	Maximum 150 Volt AC
Wiring Scheme	568A
