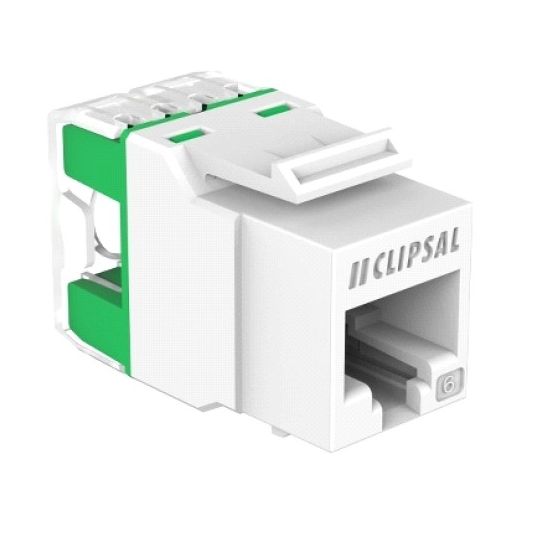

Clipsal Actassi S-110 Keystone Mechanism Cat6 UTP RJ45 T568A/B White

Description

Keystone Mechanism Cat6 UTP RJ45, 1000 Volt AC/DC, 1.5 Amp, AWG 24-AWG 23, 0.9-1.4mm Cable Diameter, RJ45 Connector, Cat6, UTP Cable, 20 mOhm Contact Resistance, Initial: > 500 mOhm at 100 VDC Insulation Resistance, 8 Pins, 1-250 MHz Bandwidth, S-110 Keystone Outlet Mechanism, Wiring Scheme: T568A/B, 750 Cycles Durability, Flammability: UL94-V0 Conforming to UL Listed, ABS + PC Housing, Copper Alloy and Gold Plated Contact Pin, White,-10 to 60 deg C, 36mm Length, 22mm Height, 16mm Width

Key Specifications

Barcode (EAN-13)	3606489512675
SKU	CLIRJ45SMA6CWE
Brand	Clipsal
Range Name	RJ45

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	RJ45SMA6C-WE
Cable Type	Cat6/UTP
Colour	White
Conductor Size	AWG 24-AWG 23
Connector	RJ45
Contact Resistance	20 mOhm
Current	1.5 Amp
Durability	750 Cycles
Flammability	UL94-V0 Conforming to UL Listed
Frequency Bandwidth	1-250 MHz
Height	22mm
Housing Material	ABS
Insulation Resistance	Initial: > 500 mOhm at 100 VDC
Number of Pins	8 Pin
Outlet Type	S-110 Keystone
Temperature	-10 to 60 deg C
Voltage	1000 Volt AC/DC
Width	16mm
Wiring Scheme	T568A/B
