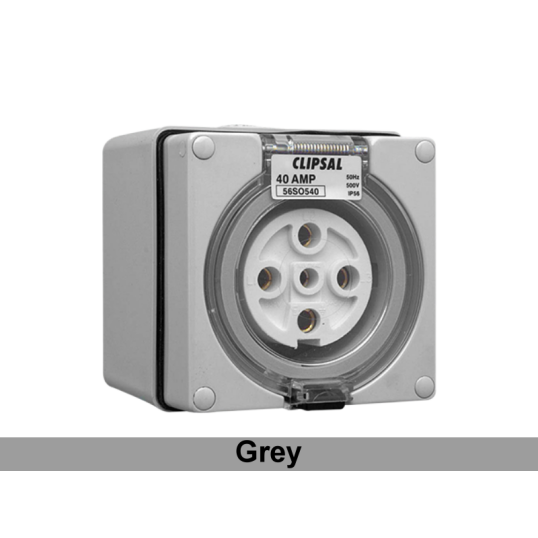

Clipsal 56 Series Socket Outlet Surface Mounting Weatherproof 3Ph 40A 500V 5 Pin Round Grey IP66

chevron-left
loader
Loading...

Description

chevron-down
Socket Outlet Surface Mounting Weatherproof, 3 Phase, 40 Amp, 500 Volt, 50/60 Hz, 5 PIn Round, 3P + N + E, Grey, IP66, Surface Mount, Polycarbonate Cover, Screw Terminal, Terminal Capacity: 6 to 16 mm, 107 mm Height, 101 mm Width, 102 mm Depth, -25 to 75 deg C

Key Specifications

chevron-down
Barcode (EAN-13)
9311554238889
SKU
CLI56SO540GY
Brand
Clipsal
Range Name
56 Series
Product Type
Socket Outlets

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product 56SO540-GY
Colour Grey
Connection Type Screw Terminal
Current 40 Amp
Depth 102 mm
Frequency 50/60 Hz
Height 107 mm
IP Rating IP66
Mounting Method Surface
Phase 3 Phase
Pin Configuration 5 Pin Round (3 + Neutral + Earth)
Temperature -25 to 75 deg C
Terminal Capacity 6-16 mm
Voltage 500 Volt
Width 101 mm
