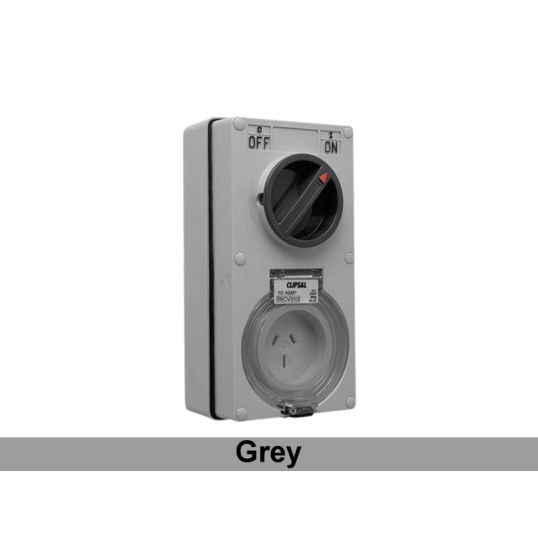

Clipsal 56 Series Socket Outlet Surface Mounting Weatherproof 1Ph 10A 250V 3 Pin Flat Heavy Duty Grey IP66

Description

Socket Outlet Surface Mounting Weatherproof, 1 Phase, 10 Amp, 250 Volt AC, 50 Hz, 1 Pole, 3 Pin Flat, 1P + N + E, Screw, 2 x M20, 1 x M25, Terminal Capacity: 6 to 16 mm, Surface Mount, IP66, Polycarbonate Cover, Phosphor Bronze Pin, Grey, 204 mm Height, 101 mm Width, 83 mm Depth, -25 to 75 deg C, Heavy Duty Mechanism

Key Specifications

Barcode (EAN-13)	9311554273484
SKU	CLI56CV310HDGY
Brand	Clipsal
Range Name	56 Series
Product Type	Socket Outlets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	56CV310HD-GY
Colour	Grey
Conduit Entry	2 x M20/1 x M25
Connection Type	Screw
Current	10 Amp
Depth	83 mm
Frequency	50 Hz
Height	204 mm
IP Rating	IP66
Mounting Method	Surface
Number Of Poles	1 Pole
Phase	1 Phase
Pin Configuration	3 Pin Flat (1 + Neutral + Earth)
Please Note	Heavy Duty Mechanism
Temperature	-25 to 75 deg C
Terminal Capacity	6-16 mm
Voltage	250 Volt
Width	101 mm
