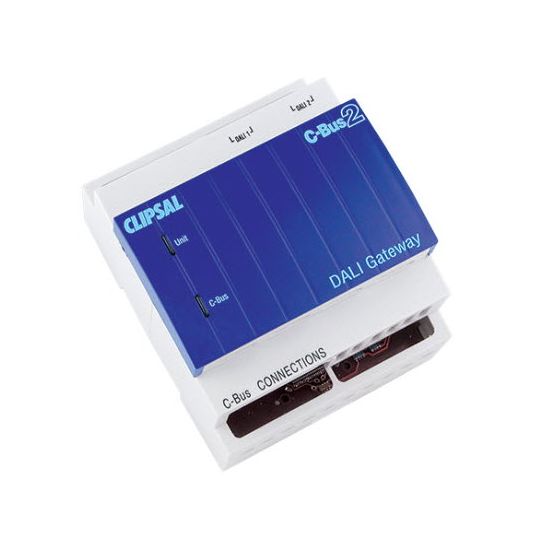

Clipsal C-Bus DALI Gateway DIN Rail Mount 4 Modules For 2 Dali Networks

Description

DALI Gateway, 32 mA, 4 Module, DIN Rail Mounting, 85 mm Width, 72 mm Height, 65 mm Depth, For 2 DALI Networks

Looking for something specific? Search with keywords to help filter your required specifications.

Features	C-Bus to DALI Gateway, DIN rail mounted 4M DIN modules wide Supports DALI lamp and ballast failure information over to the C-Bus network Capable of controlling up to 2 DALI networks Supports DALI group addresses, short addresses and scenes the DALI global (broadcast) address A remote switch input is included to turn all DALI output channels to the ON or OFF states, irrespective of the current state of C-Bus, including no C-Bus Incorporates C-Bus clock and network burden Up to 50 DALI gateways can be connected to a single C-Bus network Draws 32mA from a C-Bus network LED Local signalling
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	5502DAL
Current	32 mA
Depth	65 mm
Height	72 mm
Mounting Method	DIN Rail
Please Note	For 2 DALI Networks
Width	85 mm
