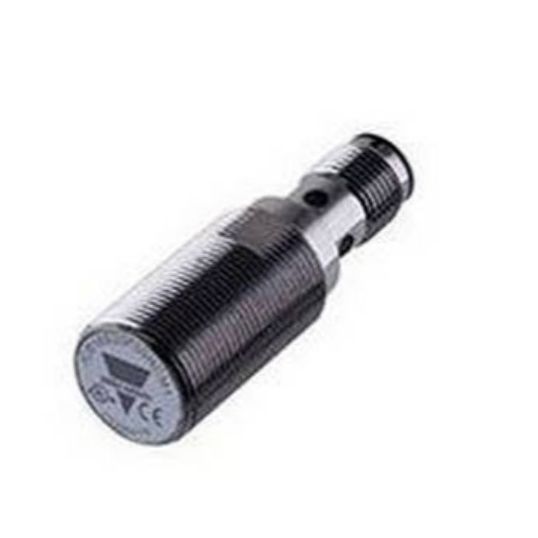

Carlo Gavazzi Proximity Sensor Inductive M18 10-36VDC PNP 1NO M12 Plug 5m L Ni Brass

$CarloGavazzi\CarloGavazzi_ICB18L50N14POM1.jpg$

Description

Proximity Sensor Inductive, Cylindrical Threaded, Sensing Range: 14 mm, Straight Through, PNP, 10-36 Volt DC, M12 Plug, NO, 5 mtr Cable, Non-Flush Mount, IP67, Nickel Plated Brass, -25 to 70 deg C, 18 mm Diameter

Key Specifications

SKU	CGVICB18L50N14POM1
Brand	Carlo Gavazzi
Product Type	Proximity Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wide range of operating voltages, current ratings and output types Extensive range of different housing styles and mounting options Specialised versions with IP69K rating available for high-pressure washdown applications for food and beverage industry Specialised loop detector sensors available which are utilised for vehicle detection in the control of boom-gates 5m cable supplied with all sensors with plug-versions
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ICB18L50N14POM1
Cable Size	5 mtr
Connection Type	M12 Plug
Contact Configuration	Normally Opened
Diameter	18 mm
IP Rating	IP67
Material	Nickel Plated Brass
Output Function	PNP
Operating Voltage	10-36 Volt DC
Mounting Method	Non-Flush
Sensing Range	14 mm
Sensing Position	Straight Through
Shape	Cylindrical Threaded
Temperature	-25 to 70 deg C
