Certech UTP Network Cable Cat6 4 Pair 23AWG Gel Filled HDPE/LDPE Black 305M

Description

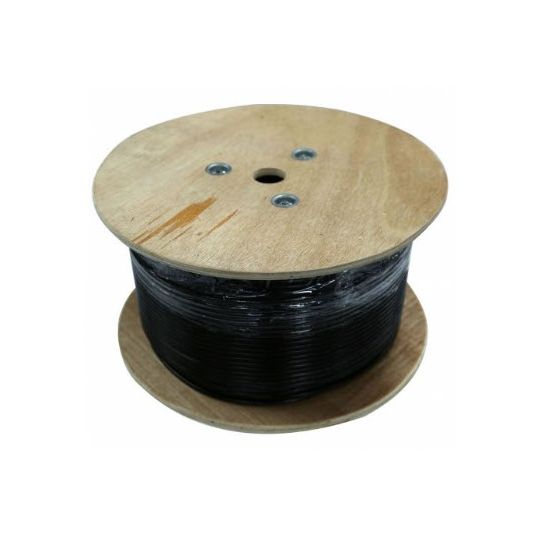

The CERTECH 305 mtr CAT 6 U/UTP external cable is a high-performance network cable designed for outdoor and underground use. The cable consists of 4 x copper conductor twisted pairs separated by a pair divider, a PE jacket, a strength member and a dry core layer. With CAT 6 performance, this cable guarantees data transmission speeds of up to 1 gigabit per second (1 Gbps). Wrapped in a PE sheath and containing a dry core layer, this cable is protected from both UV rays and the ingress of water, making it an ideal choice for challenging outdoor installations. The NCC6SLDGEL cable from CERTECH is supplied on a 305 mtr wooden reel.

Key Specifications

SKU	CERNCC6SLDGEL
Brand	Certech

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	305 mtr CAT 6 Black U/UTP External Solid Cable Roll 250 MHz 100% Bare Copper Cable 23 AWG x 4P PE Jacket for UV protection Integrated pair separator Internal strength member
Standard Pack Size	1
UNSPSC Class	26121600
UOM	EA
Vendor Product	NCC6SLDGEL
Cable Type	Cat 6 UTP
Bend Radius	8 x OD/4 x OD
Conductor Diameter	0.565 mm
Conductor Resistance	9.38 Ohm/100m
Conductor Size	23 AWG
Conductor Material	Bare copper
Elongation	>=300- >=350
Frequency Bandwidth	250 MHz
Insulation Material	HDPE
Pair Count	4
Outside Diameter	6.8 mm
Sheath Colour	Black
Sheath Material	LDPE
Sheath Thickness	0.60 mm +/-0.05 mm
Stranding	Solid
Temperature	40 to 75 deg C
