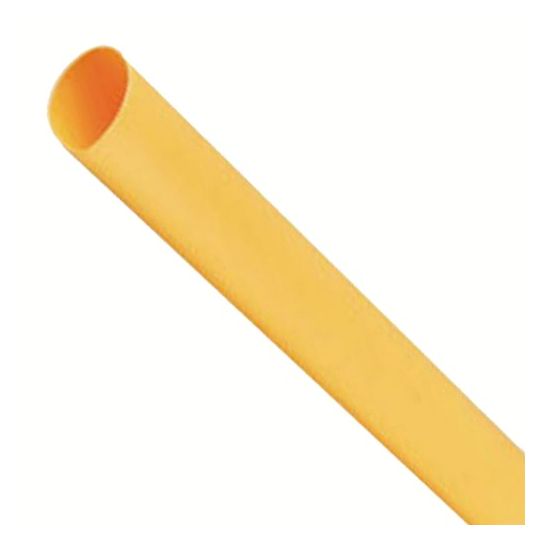

Cabac XLP Heatshrink Tubing Thin Wall Plain Unlined General Purpose 3.2-1.6mm 1.2M Yellow

Description

Heatshrink Tubing, Thin Wall, Plain Unlined, Shrink Diameter From 3.2 mm to 1.6 mm, Shrink Ratio: 2:1, Wall Thickness Recovered: 0.48 mm, 1.2 mtr Length, 600 Volt, Dielectric Strength: 20 kV/mm, Tensile Strength: 16 MPa, Shrink Temperature: 100 Deg C, Elongation: 400%, Flammability Rating: ASTM-D-2671, VW-1, XLPO, Yellow, -75 to 135 Deg C

Key Specifications

Barcode (EAN-13)	9318674778820
SKU	CAAXLP3-Y/4FT
Brand	Cabac
Range Name	XLP Tubing
Product Type	Heatshrink Tubing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121700
UOM	LN
Vendor Product	XLP3Y/4FT
Colour	Yellow
Flammability Rating	ASTM-D-2671/VW-1
Elongation	400%
Dielectric Strength	20 kV/mm
Lining Type	Plain Unlined
Shrink Diameter From	3.2 mm
Shrink Diameter To	1.6 mm
Tensile Strength	16 MPa
Temperature	-75 to 135 Deg C
Shrink Ratio	2:1
Wall Type	Thin
Voltage	600 Volt
Shrink Temperature	100 Deg C
Wall Thickness Recovered	0.48 mm
