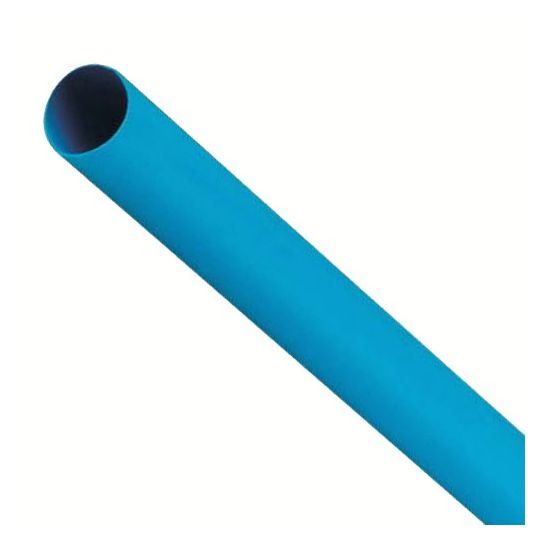

Heatshrink Tube Thin Wall Unlined 9.5-4.8mm 1.2M Blue

Cabac XLP Heatshrink Tubing Thin Wall Plain Unlined General Purpose 9.5-4.8mm 1.2M Blue

PRODUCT CODE:
CAAXLP10-BL/4FT
Std Pack Size
1
OUR P/N:
CAAXLP10-BL/4FT

You need to be registered and logged in to view product details and pricing

Heatshrink Tubing, Thin Wall, Plain Unlined, Shrink Diameter From 9.5 mm to 4.8 mm, Shrink Ratio: 2:1, Wall Thickness Recovered: 0.62 mm, 1.2 mtr Length, 600 Volt, Dielectric Strength: 20 kV/mm, Tensile Strength: 16 MPa, Shrink Temperature: 100 Deg C, Elongation: 400%, Flammability Rating: ASTM-D-2671, VW-1, XLPO, Blue, -75 to 135 Deg C

Additional Information

Additional Information
Brand Cabac
Range Name XLP Tubing
Standard Pack Size 1
UNSPSC Class 39121700
UOM LN
Vendor Product XLP10BL/4FT
Colour Blue
Dielectric Strength 20 kV/mm
Elongation 400%
Flammability Rating ASTM-D-2671/VW-1
Lining Type Plain Unlined
Length 1.2mtr
Product Type Heatshrink Tubing
Shrink Diameter From 9.5mm
Shrink Diameter To 4.8mm
Shrink Ratio 2:1
Temperature -75 to 135 Deg C
Shrink Temperature 100 Deg C
Tensile Strength 16 MPa
Wall Thickness Recovered 0.62 mm
Wall Type Thin
Voltage 600 Volt
