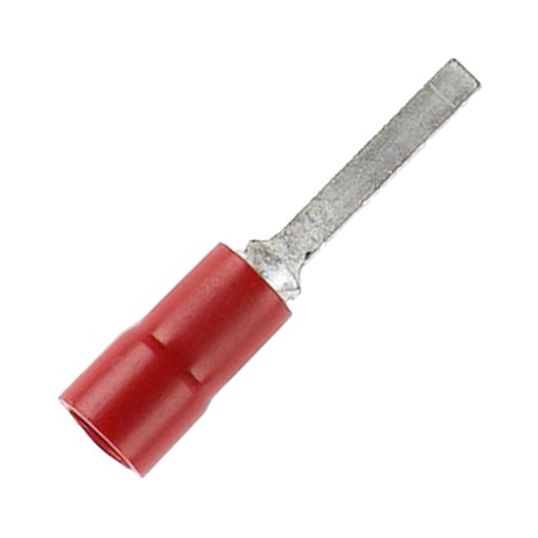

Cabac Flat Blade Insulated Single Grip 11.7mm Blade 0.5-1.6mm Red

Description

Flat Blade Connector Insulated Single Grip, 0.5-1.6 mm, 300 Volt, 1.5 kV Min. Breakdown Voltage, 200 Mpa Tensile Strength, 35% Ductile Rating, 99.5% IACS Conductivity, 1.738 micro-Ohm cm Resistivity, Copper, PVC Insulation, 100 micro-Ohm Insulation Resistance, Red Insulation, Tin Electroplated, -40 to 105 deg C, 11.7 mm Blade Length, 2 mm Width

Key Specifications

Barcode (EAN-13)	9318674519140
SKU	CAAFB1.25-2
Brand	Cabac
Range Name	Pre-Insulated Terminals
Product Type	Blade & Pin Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High quality product - meets international standards Reduce installation errors - full insulation Funnel entry design speeds up wire terminating Superior long term electrical integrity
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	FB1.25-2
Blade Length	11.7 mm
Conductive Material	Copper
Conductivity	99.5% IACS
Conductor Size	0.5-1.6mm
Ductile Rating	35%
Finish	Tin Electroplated
Insulation Colour	Red
Insulation Material	PVC
Insulation Resistance	100 micro-Ohm
Min. Breakdown Voltage	1.5 kV
Resistivity	1.738 micro-Ohm/cm
Temperature	-40 to 105 deg C
Tensile Strength	200 MPa
Voltage Rating	300 Volt
Width	2 mm
