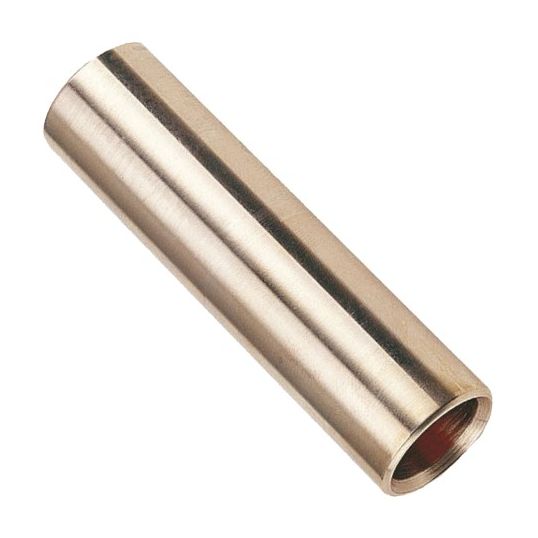

Cabac Crimp Link with Internal Barrier Copper 150mm 37/2.25 85mm OAL

Description

Crimp Link with Internal Barrier, Copper, 150 mm Conductor, Number of Strands: 37/2.25, 16.5mm Inside Diameter, 85 mm Overall Length,200 MPa, Ductile Rating: 40%, Resistivity: 1.738 ?Ohm cm, Conductivity: 99.7% IACS, A/F Hex Die: 18.3 mm, Crimping Die: HT130-C-150, 2 Crimps, Annealed Copper Body, Copper Conductor, Tin Electroplated Finish, -55 to 100 deg C, with Internal Barrier

Key Specifications

Barcode (EAN-13)	9318674513216
SKU	CAACASB150
Brand	Cabac
Range Name	Barrier Links Copper
Product Type	Links Standard Copper

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for paper cables or in any situation where an impermeable barrier to oil or moisture is required Reducing links are barrier type as well Crimped with CABAC and MSS Power standard tooling and copper dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CASB150
Body Material	Annealed Copper
A-F Hex Die	18.3 mm
Conductive Material	Copper
Conductivity	99.7% IACS
Conductor Size	150 mm
Crimping Die	HT130-C-150
Ductile Rating	40%
Finish	Tin Electroplated
Inside Diameter	16.5 mm
Number of Crimps	2
Overall Length	85 mm
Number of Strands	37/2.25
Resistivity	1.738 Ohm/cm
Temperature	-55 to 100 deg C
Tensile Strength	200 MPa
