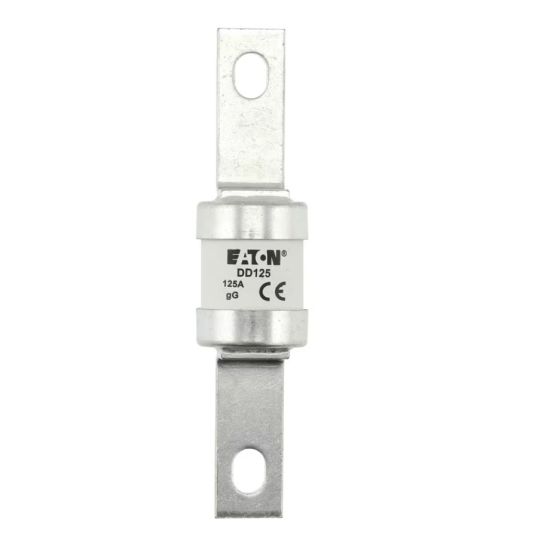

Bussmann Fuse Link HRC Bolt In Centre 125 Amp 415VAC 80 kA Class gG BS88 Type B2
Loading...
Description
Fuse Link HRC Bolt In Centre, 415 VAC, 125 Amp, Class gG, Interrupt Capacity: 80 kA, 111mm Fixing Centres, Bolt In Centre Tag, 31mm Diameter x 136mm Length, BS88 Type B2
Key Specifications
| SKU |
BUSDD125
|
|---|---|
| Brand |
Bussmann
|
| Product Type |
Fuse Links HRC
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 5 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | DD125 |
| Dimensions | 31 mm Diameter x 136 mm Length |
| Current | 125 Amp |
| Fixing Centres | 111 mm |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type B2 |
| Utilisation Category | Class gG |
| Tag Type | Bolt In Centre |
| Voltage | 415 Volt AC |
Downloads
