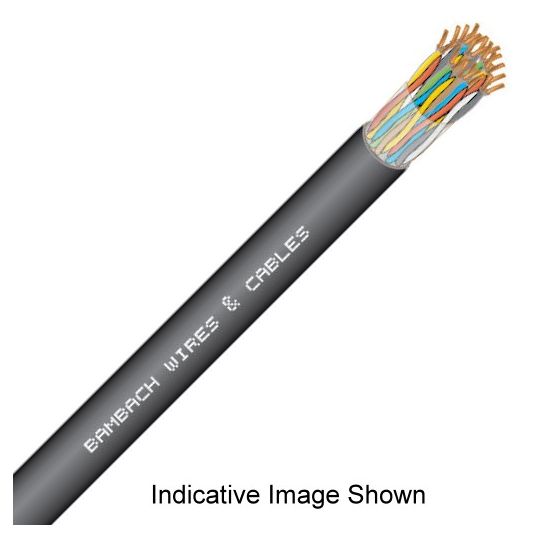

Bambach Internal Telephone Cable 0.91mm 6 Pair Polyethylene/Polyethylene Black

Description

Internal Telephone Cable, ELV-50 Volt AC 120 Volt Ripple Free DC, 0.91mm Conductor Diameter, Stranding: 1/0.91mm, Bend Radius: 96mm, 6 Pair, Oxygen Free Plain Annealed Copper Conductor, Polyethylene Insulation, Polyethylene Sheath, Black Sheath,-25 to 70 deg C, 12mm Outside Diameter

Key Specifications

SKU	BAM14520BKS
Brand	Bambach
Product Type	Internal Phone Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Nylon jacket telecom cable is suitable for installation underground Tape over bunched pairs allows the sheath to be removed easily to assist in installation Large conductor size for less attenuation and easy installation Oxygen free copper for high conductivity soldered connections Low capacitance cable gives less signal attenuation and allows the signal to travel further without distortion Easy to solder- large diameter, single strand wire assists with soldering and allows for easy connection Termite Protection- optional nylon jacket provides protection against termites in underground installations
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	14520BKS
Bend Radius	96mm
Conductor Material	Oxygen Free Plain Annealed Copper
Conductor Diameter	0.91mm
Insulation Material	Polyethylene
Outside Diameter	12mm
Pair Count	6 Pair
Sheath Colour	Black
Temperature	-25 to 70 deg C
Stranding	1/0.91mm
Sheath Material	Polyethylene
