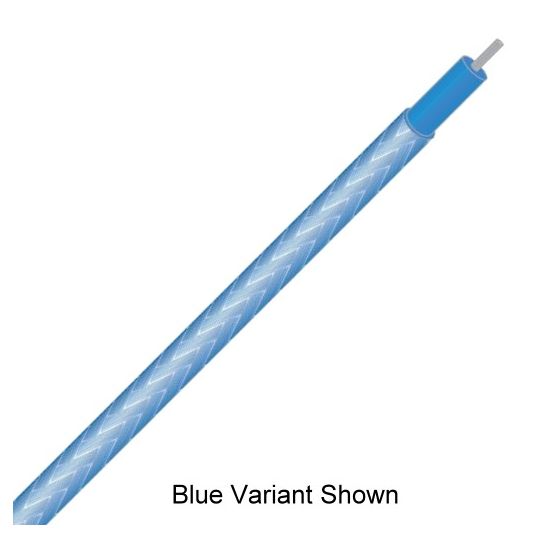

Bambach 2.5mm 1 Core Cream High Temperature Flexible Wire Silicone Rubber/ Glass Braid

Description

Flexible Wire, High Temperature, 2.5 mm, Class 5 Tinned Annealed Copper, 250 Volt, 50 Amp, 1 Core, 50/0.25 mm Strands, 4.5 mm Overall Diameter, 27 mm Bend Radius, Silicone Rubber R-S-200 Insulation, Silicone Impregnated Glass Braid Sheath, Cream Sheath, 0 to 200 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 3191 IEC 60228

Key Specifications

SKU	BAM11490GN
Brand	Bambach
Range Name	Silicone & Glass Braid

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	R-S-200 insulation is suitable for operation in temperatures up to 200 deg C (R-S-150 for temperatures to 150 deg C) Silicone rubber exhibits excellent electrical resistance Double glass braid gives 100% coverage of silicone insulation Varnish impregnated glass braid provides excellent wear resistance, particularly at high temperatures Oxygen free tinned copper for high conductivity soldered connections and corrosion protection High Temperature Rating - Silicone rubber insulation is suitable for use in high temperatures Flexible Stranding- Class 5 flexible conductor stranding Abrasion Resistant- Varnish impregnated glass braid provides excellent abrasion resistance Easy to Solder- Tinned copper conductors for easy adhesion Mechanical Strength- Glass braid coupled with silicone insulation gives good tensile strength
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	11490GN
Bend Radius	27 mm
Conductor Size	2.5 mm
Current	50 Amp
Conductor Type	Class 5 Tinned Annealed Copper
Insulation Material	Silicone Rubber R-S-200
Overall Diameter	4.5 mm
Number of Cores	1 Core
Sheath Colour	Cream
Sheath Material	Silicone Impregnated Glass Fibre Braid
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 3191 IEC 60228
Temperature	0 to 200 deg C
Stranding	50/0.25 mm
Voltage	250 Volt
