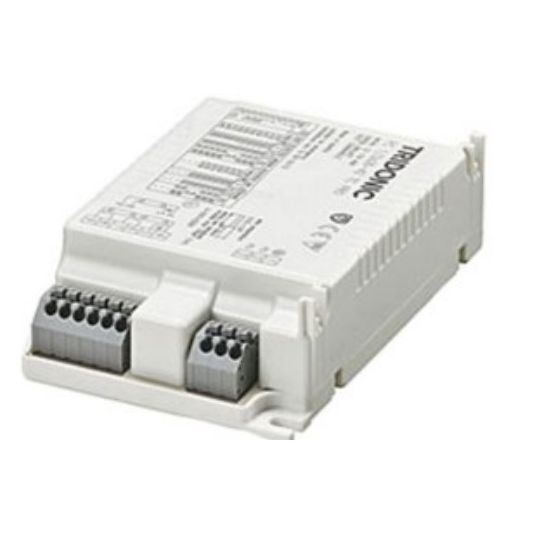

CMP-Atco Fluorescent Ballast Electronic 50.2W 220/240V T5c IP20 103mm F/1/2x26-42W T5c Fluorescent Lamp and Luminaries

Description

Fluorescent Ballast Electronic, T5c Fluorescent, 220/240 Volt AC, 50.2 Watt, 50/60 Hz, Ballast Factor: 1, IP20, For Use With: 1/2 x 26-42 Watt T5c Fluorescent Lamp and Luminaries, -25 to 60 deg C, 31 mm Height, 67 mm Width, 103 mm Length

Key Specifications

Barcode (EAN-13)	9314892928542
SKU	ATCPC1/2X26-42TCPRO
Brand	CMP-Atco
Product Type	Ballast Fluorescent

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	CELMA Energy Efficiency Index A2 BAT/A2 Large temperature range (for values see table) Devices can operate either 1 or 2 lamps Intelligent voltage guard (overvoltage indication and undervoltage shutdown) Constant luminous flux irrespective of fluctuations in mains voltage For luminaries of protection class I and protection class II Automatic start after replacement of defective lamps Safety shutdown of defective lamps and at end of lamp life (EOL 2) For emergency lighting systems as per EN 50172 For luminaries with M and MM as per EN 60598, VDE 0710 and VDE 0711
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	22176408
Ballast Factor	1
For Use With	1/2 x 26-42 Watt T5c Fluorescent Lamp/Luminaries
Frequency	50/60 Hz
Height	31 mm
IP Rating	IP20
Lamp Type	T5c Fluorescent
Temperature	-25 to 60 deg C
Wattage	50.2 Watt
Voltage	220-240 Volt AC
Width	67 mm
