APEC 10 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 1mtr
Loading...
Description

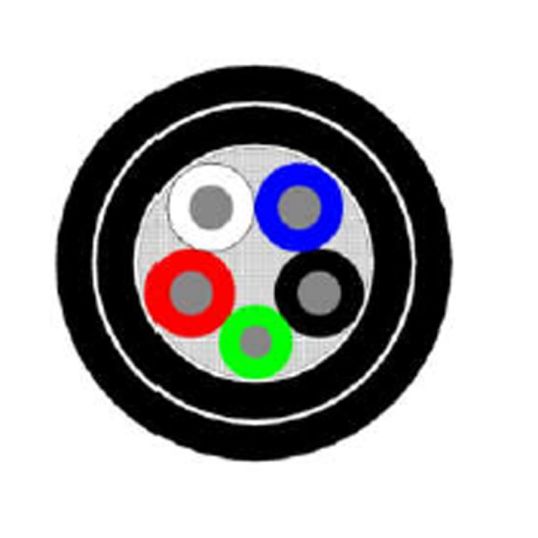

Fire Rated Cable, 10 mm, Class 5 Annealed Copper, 0.6-1 kV, 4 Core + Earth, 4 mm Earth Conductor, 20.8 mm Overall Diameter, 1 mtr Length, 0.7 mm Insulation Thickness, 1.8 mm Sheath Thickness, Red/White/Blue/Black/Green/Yellow Core, X-HF-110 Insulation, HFS-110-TP Sheath, Red Sheath, WS52W, 110 deg C, AS/NZS 5000.1 AS/NZS 3013
Key Specifications
| Barcode (EAN-13) |
932666301396
|
|---|---|
| SKU |
APEFRF010E04
|
| Brand |
APEC
|
| Product Type |
Fire Rated Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | FRF010E04 |
| AS3013 Rating | WS52W |
| Conductor Size | 10 mm |
| Conductor Type | Class 5 Annealed Copper |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Earth Conductor Size | 4 mm |
| Insulation Material | X-HF-110 |
| Insulation Thickness | 0.7 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 20.8 mm |
| Sheath Colour | Red |
| Sheath Material | HFS-110-TP |
| Sheath Thickness | 1.8 mm |
| Standards | AS/NZS 5000.1 AS/NZS 3013 |
| Temperature | 110 deg C |
| Voltage | 0.6-1 kV |
