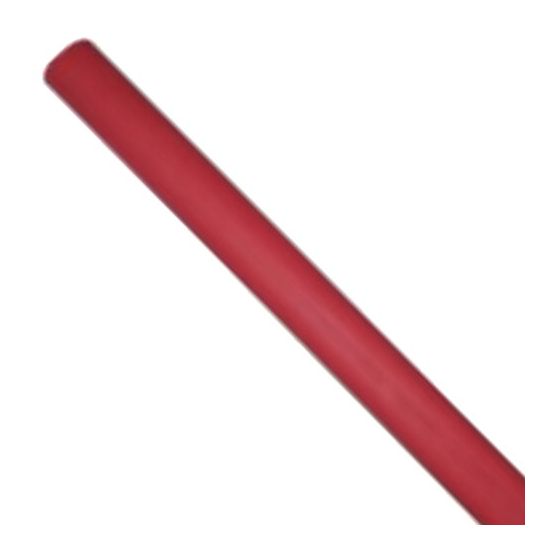

Alco HSTNW Heatshrink Tubing Thin Wall Plain Unlined 10.4-5mm 1.2M Red

Description

Heatshrink Tubing Thin Wall Plain Unlined, Shrink Diameter From: 10.5 mm, Shrink Diameter To: 5 mm, 50% Shrink Ratio, Plain Unlined Lining Type, Thin Wall Type, 0.6 mm Wall Thickness Recovered, 580% Elongation, 110 deg C Shrink Temperature, 15.5 Mpa Tensile Strength, ?15 kV/mm Dielectric Strength, UL/VW-1 Flammability Rating, Ethylene Vinyl Acetate, Red, -55 to 125 deg C, 1.2 mtr Length

Key Specifications

Barcode (EAN-13)	9328587006712
SKU	ALCHSTNW10.0/5.0RD
Brand	Alco
Range Name	Type HSTNW
Product Type	Heatshrink Tubing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Heatshrink can be used for heavy duty and general purpose Low shrink temperature and flame retardant Flexible and UV resistant
Standard Pack Size	1
UNSPSC Class	39121700
UOM	EA
Vendor Product	HSTNW10.0/5.0RD
Colour	Red
Dielectric Strength	?15 kV/mm
Elongation	580%
Flammability Rating	UL/VW-1
Lining Type	Plain Unlined
Material	Ethylene Vinyl Acetate
Shrink Diameter To	5 mm
Shrink Diameter From	10.5 mm
Shrink Ratio	50%
Shrink Temperature	110 Deg C
Temperature	-55 to 125 Deg C
Tensile Strength	15.5 MPa
Wall Thickness Recovered	0.6 mm
Wall Type	Thin
