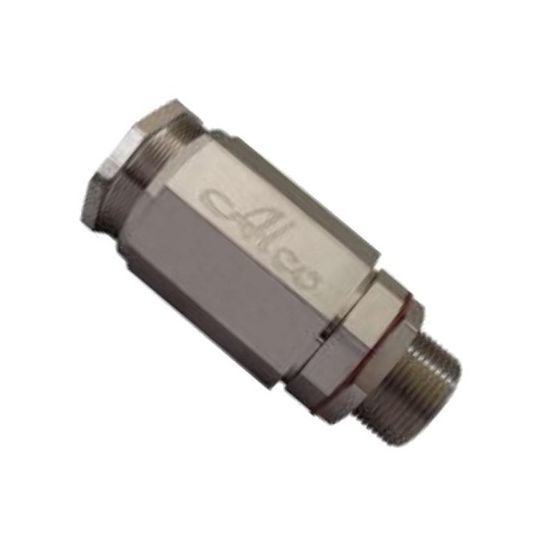

Alco Hazardous Area Cable Gland Armoured Barrier Weatherproof 28-32mm M32 IP66/68

Description

Hazardous Area Cable Gland, Armoured, Barrier, Weatherproof, M32, 20 mm Thread Length, 28 mm Min. Sheath OD, 32 mm Max. Sheath OD, 23 mm Max. Bedding OD, 1.6 mm Min. Armour Wire, 2 mm Max. Armour Wire, Exd, Exe, DIP, 51.4 mm Width Across Flats, 47.5 mm Width Across Corners, For Armoured Cable, IP66/68, TPR Seal, Brass Body, Nickel Plated Finish

Key Specifications

Barcode (EAN-13)	9328587013758
SKU	ALCHAW32B-B
Brand	Alco
Range Name	Type HAW-B
Product Type	Cable Glands Armoured Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Indoor or outdoor use Provides seal on cable sheath, clamps SWA
Standard Pack Size	6
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCHAW32B-B
Body Material	Brass
For Use With	Armoured Cable
Finish	Nickel Plated
Hazardous Area Rating	Exd Exe DIP
IP Rating	IP66/68
Max. Armour Wire	2 mm
Max. Bedding OD	23 mm
Min. Armour Wire	1.6 mm
Max. Sheath OD	32 mm
Min. Sheath OD	28 mm
Seal Material	TPR
Thread Size	M32
Thread Length	20 mm
Width Across Corners	47.5 mm
Width Across Flats	51.4 mm
