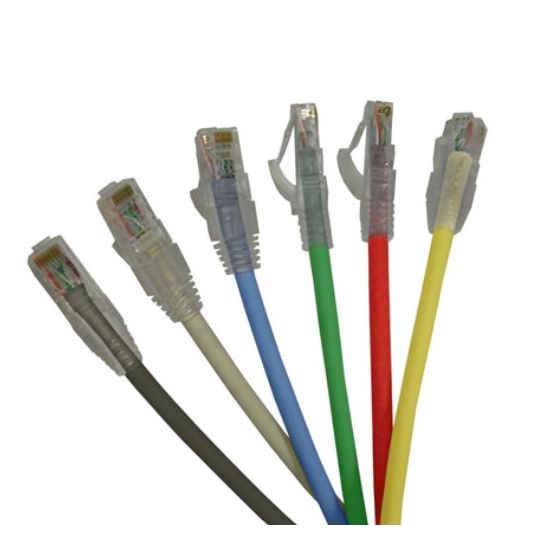

Molex U/UTP Patch Cord Cat6 RJ45-RJ45 4 Pair 24AWG LSZH White 5m

Description

U/UTP Patch Cord Cat6, Connector A: RJ45 Plug, Connector B: RJ45 Plug, 4 Pair, 24 AWG Conductor, Stranded Conductor, 5.9mm OD, 5 mtr Cord Length, 150 VAC Max, 1.5 Amp at 25 deg C, 23.6mm Bend Radius, Wiring Scheme: T568A/T568B, Copper Conductor, LSZH Sheath, Contact Material: 0.35mm Thick Copper Alloy, Boot Material: Polycarbonate, White Sheath, Clear Boot,-20 to 60 deg C

Key Specifications

Barcode (EAN-13)	884982566682
SKU	MODPCD-02009-0W
Brand	Molex
Product Type	Cat6 Patch Cord

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	4 pair 24 AWG stranded copper wire Pre-terminated with WE8W plugs Slim clear anti-snag slip on boots Suitable for EIA 568A or 568B wiring LS0H sheath
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	PCD-02009-0W
Conductor Material	Copper
Conductor Size	24 AWG
Connector A	RJ45
Connector B	RJ45
Contact Material	0.35mm Thick Copper Alloy
Cord Length	5 mtr
Current	1.5 Amp
Outside Diameter	5.9mm
Pair Count	4 Pair
Plug Boot Material	Polycarbonate
Sheath Colour	White
Sheath Material	LSZH
Temperature	-20 to 60 deg C
Voltage	150 Volt
Wiring Scheme	T568A/T568B
