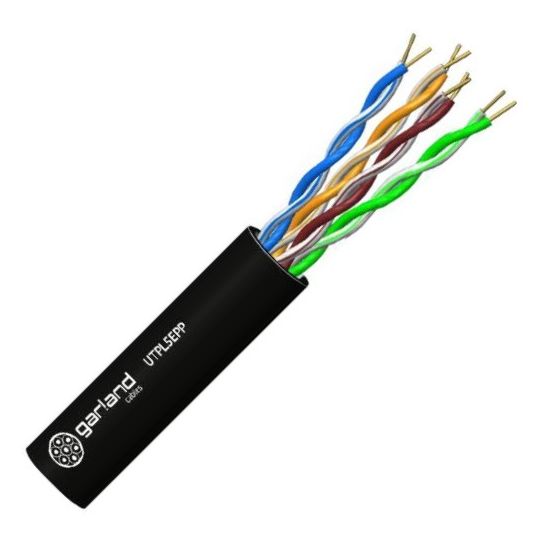

Garland Pro Series UTP Data Cable Cat5e 4 Pair 24AWG Polyethylene/Polyethylene Signal Black 500M

$Garland\Garland_UTPL5EPP.jpg$

Description

UTP Data Cable Cat5e 4 Pair, 24 AWG/0.2 mm, 0.503mm Conductor Diameter, Stranding: 1/0.503mm, 93.8 Ohm/km at 20 deg C Conductor Resistance, 1000 MOhm.km at 20 deg C Insulation Resistance, 0.18mm Insulation Thickness, 0.64mm Sheath Thickness, Cat5e UTP Cable, 4 Pair, Bend Radius: Install: 54mm, 111 N Max. Pulling Force, PACW Conductor, PE Insulation, PE Sheath, Signal Black(RAL 9004) Sheath,-25 to 70 deg C, 500 mtr Length, 5.4mm Outside Diameter

Key Specifications

Barcode (EAN-13)	9329849005108
SKU	GARUTPL5EPP500
Brand	Garland
Product Type	Cat5E Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	43223300
UOM	MTR
Vendor Product	UTPL5EPP500
Conductor Material	PACW
Cable Type	Cat5e UTP
Conductor Diameter	0.503 mm
Conductor Resistance	93.8 Ohm/km at 20 deg C
Bend Radius	Install: 54 mm
Conductor Size	24 AWG/0.2 mm
Insulation Thickness	0.18 mm
Insulation Material	PE Compound
Insulation Resistance	1000 MOhm.km at 20 deg C
Max. Pulling Force	111 N
Outside Diameter	5.4 mm
Pair Count	4 Pair
Sheath Colour	Signal Black
Sheath Material	PE Compound
Sheath Thickness	0.64 mm
Stranding	1/0.503 mm
Temperature	-25 to 70 deg C
