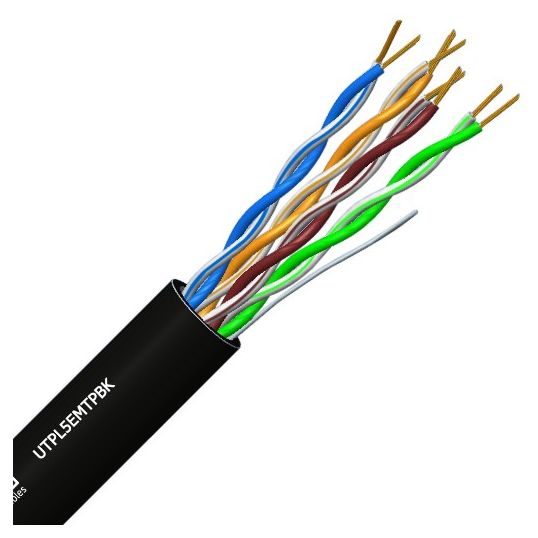

Garland UTP Data Cable Cat5e 4 Pair 24AWG Polyethylene Black 305M

Description

CAT 5e Data Cable UTP, 24 AWG/0.23 mm, 0.609 mm Conductor Diameter, 93.8 Ohm/km Conductor Resistance, 7/0.203 mm Strands, 1000 MOhm/km Insulation Resistance, 0.18 mm Insulation Thickness, Cat 5e UTP, Insulation: >300% Outer Sheath: >100% Elongation, 4 Pair, 55 mm Installation Bend Radius, 126 N Max. Pulling Force, Before Aging >13.8 MPa Tensile Strength, Bare Copper Conductor, Rip Cord: Polyester Multi Yarn Filler, Polyethylene Compound Insulation, Black Sheath, 15 to 70 deg C, 305 mtr Length

Key Specifications

SKU	GARUTPL5EMTPBK305W
Brand	Garland

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	UTPL5EMTPBK305W
Cable Type	Cat 5e UTP
Bend Radius	55 mm Installation
Conductor Diameter	0.609 mm
Conductor Resistance	93.8 Ohm/km
Conductor Size	24 AWG/0.23 mm
Conductor Material	Bare Copper
Elongation	Insulation: >300% Outer Sheath: >100%
Filler Material	Rip Cord: Polyester Multi Yarn
Insulation Resistance	1000 MOhm/km
Insulation Thickness	0.18 mm
Insulation Material	Polyethylene Compound
Max. Pulling Force	126 N
Pair Count	4
Sheath Colour	Black
Stranding	7/0.203 mm
Temperature	15 to 70 deg C
Tensile Strength	Before Aging >13.8 MPa
