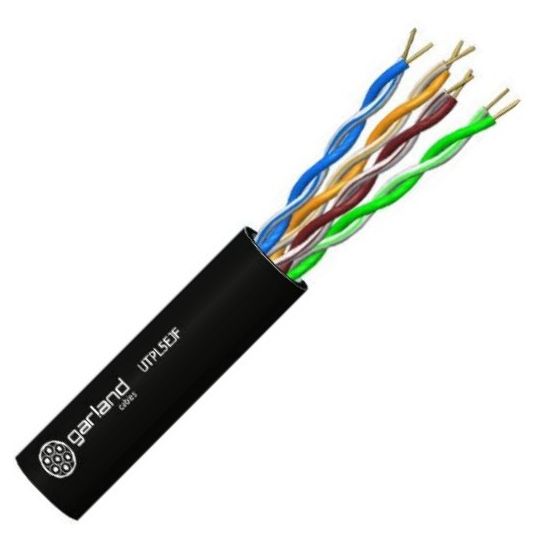

Garland Pro Series UTP Data Cable Cat5e 4 Pair 24AWG Polyethylene/Polyethylene Signal Black 305M

Description

CAT 5e Data Cable UTP, 24 AWG/0.2 mm, 0.503 mm Conductor Diameter, 93.8 Ohm/km Conductor Resistance, 1/0.503 mm Strands, 1000 MOhm/km Insulation Resistance, 0.18 mm Insulation Thickness, 1 mm Sheath Thickness, Cat 5e UTP, 4 Pair, 63 mm Installation Bend Radius, 111 N Max. Pulling Force, Annealed Copper Conductor, Water Resistant Flooding Compound Filler, Polyethylene Compound Insulation, Polyethylene Compound Sheath, Signal Black Sheath, 25 to 70 deg C, 305 mtr Length, 6.3 mm Outside Diameter

Key Specifications

Barcode (EAN-13)	9329849012533
SKU	GARUTPL5EJF305R
Brand	Garland

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	UTPL5EJF305R
Cable Type	Cat 5e UTP
Bend Radius	63 mm Installation
Conductor Diameter	0.503 mm
Conductor Resistance	93.8 Ohm/km
Conductor Size	24 AWG/0.2 mm
Conductor Material	Annealed Copper
Filler Material	Water Resistant Flooding Compound
Insulation Resistance	1000 MOhm/km
Insulation Thickness	0.18 mm
Insulation Material	Polyethylene Compound
Max. Pulling Force	111 N
Pair Count	4
Outside Diameter	6.3 mm
Sheath Colour	Black
Sheath Material	Polyethylene Compound
Sheath Thickness	1 mm
Stranding	1/0.503 mm
Temperature	25 to 70 deg C
