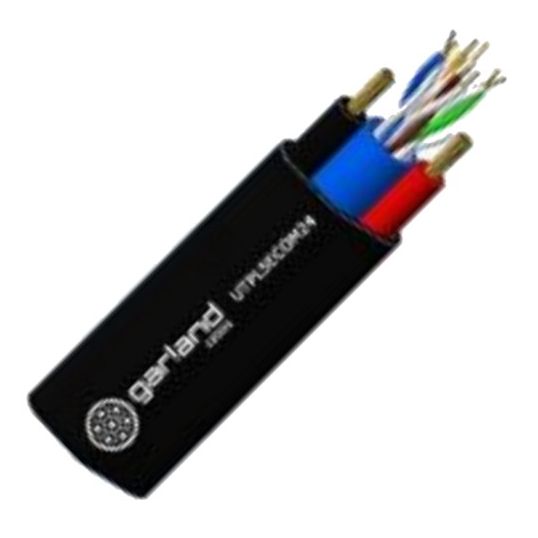

Garland Composite LAN Cable Cat5e 4 Pair 24/19AWG Polyolefin/PVC Black 250M

Description

CAT 5e LAN Cable, 24-9 AWG/0.2 mm and 0.75 mm, 0.503/1.133 mm Conductor Diameter, 27.5 Ohm/km and 9.38 Ohm/km Conductor Resistance, 1/0.503 mm and 24/0.2 mm Strands, 0.18/0.75 mm Insulation Thickness, 0.7 mm Sheath Thickness, Cat 5e, 4 Pair, 70 mm Installation Bend Radius, 111 N Max. Pulling Force, Bare Copper Conductor, Rip Cord: Polyester Multi Yarn Filler, Thermoplastic Polyolefin and PVC Insulation, PVC Sheath, Black Sheath, 150 to 700 deg C, 250 mtr Length, 7 mm x 12.4 mm Outside Diameter

Key Specifications

SKU	GARUTPL5ECOM24250
Brand	Garland

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	250
UNSPSC Class	26121600
UOM	MTR
Vendor Product	UTPL5ECOM24250
Cable Type	Cat 5e
Bend Radius	70 mm Installation
Conductor Diameter	0.503/1.133 mm
Conductor Resistance	27.5 Ohm/km and 9.38 Ohm/km
Conductor Size	24-9 AWG/0.2 mm and 0.75 mm
Conductor Material	Bare Copper
Filler Material	Rip Cord: Polyester Multi Yarn
Insulation Thickness	0.18/0.75 mm
Insulation Material	Thermoplastic Polyolefin and PVC
Max. Pulling Force	111 N
Pair Count	4
Outside Diameter	7 mm x 12.4 mm
Sheath Colour	Black
Sheath Material	PVC
Sheath Thickness	0.7 mm
Stranding	1/0.503 mm and 24/0.2 mm
Temperature	150 to 700 deg C
