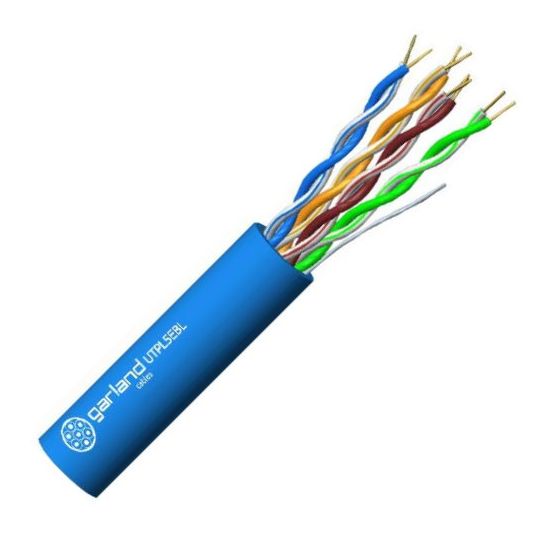

Garland Work Series UTP Data Cable Cat5e 4 Pair 24AWG Polyethylene/PVC Blue 500M

Description

UTP Data Cable Cat5e 4 Pair, 24 AWG, Stranding: Solid, 93.8 Ohm/km at 20 deg C Conductor Resistance, Cat5e UTP Cable, 4 Pair, Bend Radius: Install: 54mm, 111 N Max. Pulling Force, PACW Conductor, Rip Cord Filler, PE Insulation, PVC Sheath, Blue Sheath,-15 to 75 deg C, 500 mtr Length, 5.3mm Outside Diameter

Key Specifications

Barcode (EAN-13)	9329849013127
SKU	GARUTPL5EBL500B
Brand	Garland
Product Type	Cat5E Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	43223300
UOM	MTR
Vendor Product	UTPL5EBL500B
Cable Type	Cat5e UTP
Bend Radius	Install: 54mm
Conductor Resistance	93.8 Ohm/km at 20 deg C
Conductor Size	24 AWG
Conductor Material	PACW
Filler Material	Rip Cord
Insulation Material	PE Compound
Max. Pulling Force	111 N
Pair Count	4 Pair
Outside Diameter	5.3mm
Sheath Colour	Blue
Sheath Material	PVC
Stranding	Solid
Temperature	-15 to 75 deg C
