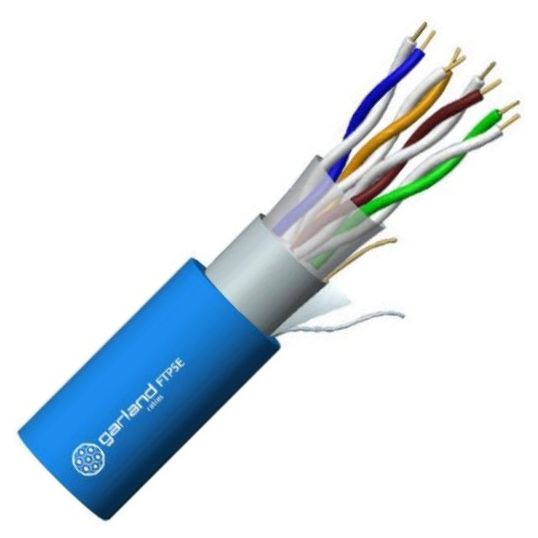

Garland Pro Series FTP Data Cable Cat5e 4 Pair Screened 24AWG Polyethylene/PVC Blue 305M

chevron-left
loader
Loading...

Description

chevron-down
Foil Twisted Pair (FTP) LAN cable is used in environments where there is concern over electrical noise either effecting the cable, or radiating from the cable. Garlands FTP5E product is constructed to address these concerns. With an overall screen of laminated aluminium and polyester and an integrated drain wire, this product offers improved EMI and EMC performance. Ideally suited to sensitive applications such as in Hospitals, Embassies, Consulates, Government and Industrial LAN environments, Garland's FTP5E uses an oversized 0.54 mm conductor to provide excellent attenuation performance in a standard CAT 5eLAN cable.

Key Specifications

chevron-down
SKU
GARFTP5EBL305R
Brand
Garland

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 305
UNSPSC Class 26121600
UOM MTR
Vendor Product FTP5EBL305R
Cable Type Cat 5e Screened FTP
Bend Radius 65 mm Installation
Conductor Diameter 0.542 mm
Conductor Resistance 93.8 Ohm/km
Conductor Size 24 AWG/0.23 mm
Conductor Material Annealed Copper
Insulation Resistance 1000 MOhm/km
Insulation Thickness 0.23 mm
Insulation Material Polyethylene Compound
Max. Pulling Force 129 N
Pair Count 4
Outside Diameter 6.5 mm
Screen Material Aluminium Foil/Polyester Tape
Sheath Colour Blue
Sheath Material PVC
Sheath Thickness 0.6 mm
Stranding 1/0.542 mm
Temperature 15 to 70 deg C
