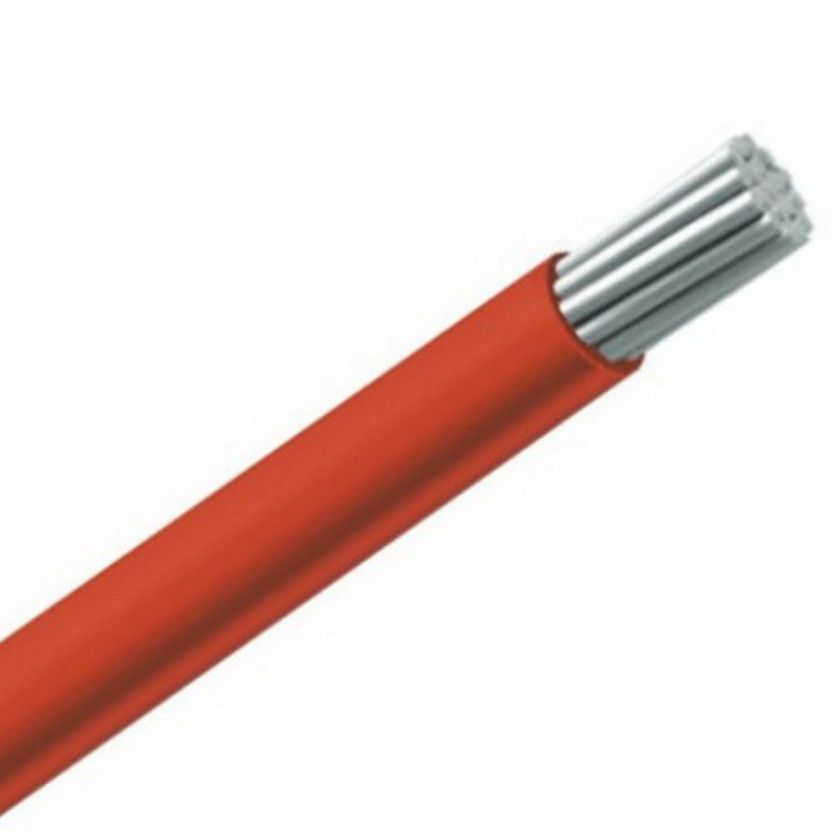

Flex Wire H/D 1C 6mm CU V90HT PVC Red 0.6/1kV

Elcon Heavy Duty Flexible Wire Single Insulated 1 Core 6mm 0.6/1kV Tinned Annealed Copper V90HT PVC Red


Std Pack Size

You need to be registered and logged in to view product details and pricing

Flexible Wire, Single Insulated, Heavy Duty, 1 Core, 6 mm, Tinned Annealed Copper, 0.6/1 kV, 47 Amp, 84/0.3 mm Strands, 5.46 mm Overall Diameter, 1.1 mm Insulation Thickness, Insulation Resistance: 3.39 MOhm/m, V-90HT PVC Insulation, Unsheathed, Red Insulation, 90 deg C

Additional Information

Additional Information
Brand Elcon Cables
Standard Pack Size 100
UNSPSC Class 26121500
Vendor Product FHDT18403R100M
Conductor Type Tinned Annealed Copper
Insulation Colour Red
Current 47 Amp
Insulation Material V-90HT PVC
Insulation Thickness 1.1 mm
Insulation Resistance 3.39 MOhm/m
Overall Diameter 5.46 mm
Product Type Flexible Wire 1 Core
Sheath Material Unsheathed
Stranding 84/0.3 mm
Temperature 90 deg C
Voltage 0.6-1 kV
Conductor Size 6 mm
Number of Cores 1
