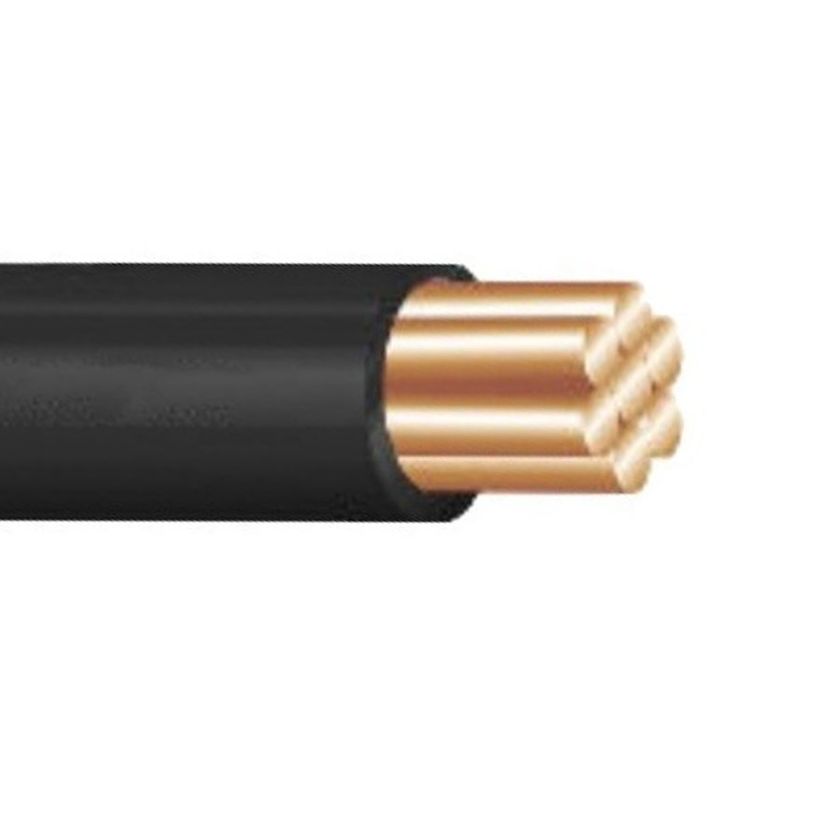

Electra 120mm Building Wire Black 100mtr

Description

Building Wire, 120 mm, Annealed Copper, 0.6-1 kV, 250 Amp, 37/2.03 mm Strands, 17.6 mm Overall Diameter, 100 mtr Length, 70 mm Bend Radius, 1.6 mm Insulation Thickness, DC: 0. 153 Ohm/km AC: 0.188 Ohm/km Conductor Resistance, V-90 PVC Insulation, Black Insulation, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1

Key Specifications

SKU	ELCSR11200-BLK
Brand	Electra
Product Type	Building Wire

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121614
UOM	MTR
Vendor Product	SR11200-BLK
Bend Radius	70 mm
Conductor Resistance	DC: 0. 153 Ohm/km AC: 0.188 Ohm/km
Conductor Size	120 mm
Conductor Type	Annealed Copper
Current	250 Amp
Insulation Colour	Black
Insulation Material	V-90 PVC
Insulation Thickness	1.6 mm
Overall Diameter	17.6 mm
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
Stranding	37/2.03 mm
Temperature	90 deg C
Voltage	0.6-1 kV
