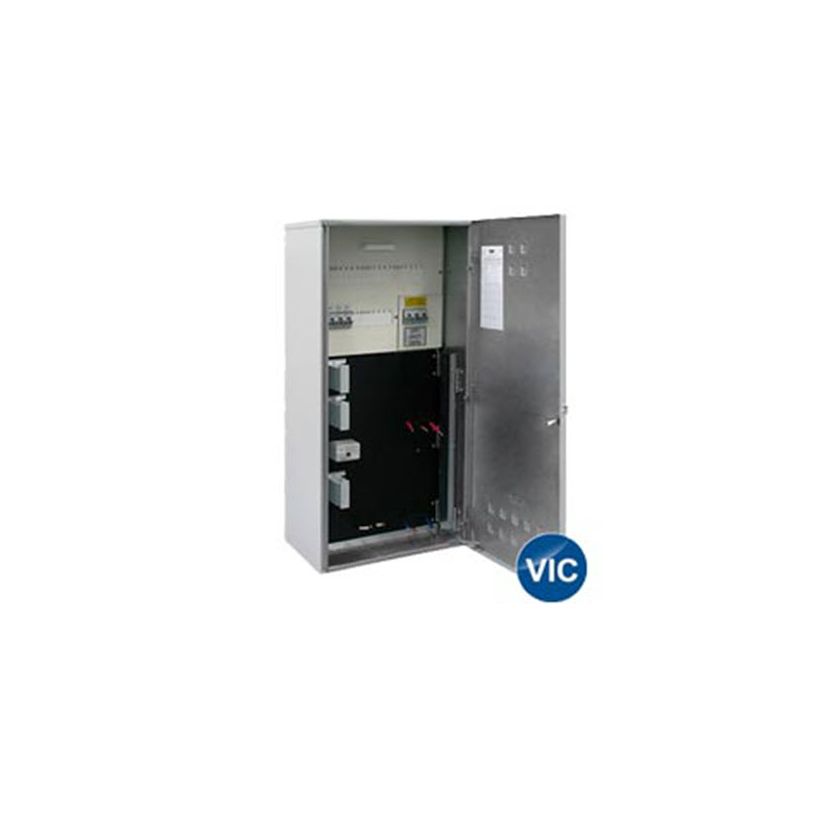

B&R Meter Box Group Metering Victoria Prewired 5m x 100 Amp Single Phase W630mm H1085mm D335mm Steel Galvanised

$B-R\B-R_GMPV.jpg$

Description

Meter Box Group Metering Victoria Prewired, Service Facilities: 5 mtr x 100 Amp, 1 Phase, IP23, DIN-Rail, Steel Body, RAL 7035, Galvanised, 1085mm Height, 630mm Width, 335mm Depth

Key Specifications

Barcode (EAN-13)	9321228052062
SKU	B&RGMPV05
Brand	B&R
Product Type	Meter Boxes Group Metering

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for both single and multi-phase installations Pre-wired and unwired solutions for multiple tenancy installations in all areas of Victoria Pre-wired and ready to fit meter Ample DIN space Upgradeable to include supply capacity control Manufactured from 1.0mm galvanised steel to Z275 Powder coated light grey RAL7035 40 Amp tenancy sub-main MCBs Meter fuse holders Service protection device fuse holders
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	GMPV05
Colour	Grey
Enclosure Depth	335 mm
Enclosure Height	1085 mm
Enclosure Width	630 mm
Finish	Galvanised
IP Rating	IP23
Material	Steel
Mounting Method	DIN Rail
Service Facilities	5 mtr x 100 Amp/1 Phase
