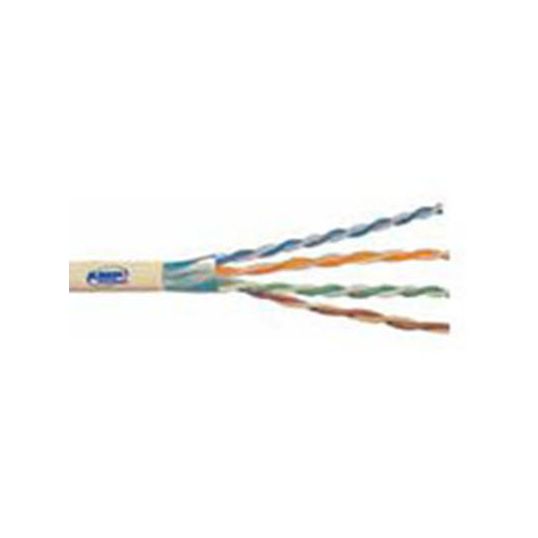

AMP Netconnect 640 Series CS44Z1 F/UTP Data Cable Cat6A 4 Pair 23AWG Polyolefin/LSZH Violet 305M

$AMP_Netconnect\AMP_1859218.jpg$

Description

F/UTP Data Cable Cat6A 4 Pair, 80 Volt, Solid, 23 AWG, 6.66 Ohms/100 mtr Conductor Resistance, 4 Pair, Aluminium Foil Shielded, 500 MHz Bandwidth, Cat6A F/UTP (Shielded) Cable, Bare Copper Conductor, Polyolefin Insulation, LSZH Sheath, Violet Sheath, 305 mtr Length

Key Specifications

SKU	AMP1859218-9
Brand	AMP Netconnect
Range Name	NETCONNECT
Product Type	Cat6A Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	BX
Vendor Product	1859218-9
Conductor Material	Bare Copper
Cable Type	Cat6A F/UTP (Shielded)
Conductor Resistance	6.66 Ohms/100 mtr
Conductor Size	23 AWG
Conductor Type	Solid
Frequency Bandwidth	500 MHz
Insulation Material	Polyolefin
Pair Count	4 Pair
Sheath Colour	Violet
Sheath Material	LSZH
Shielded Type	Aluminium Foil
Voltage	80 Volt
