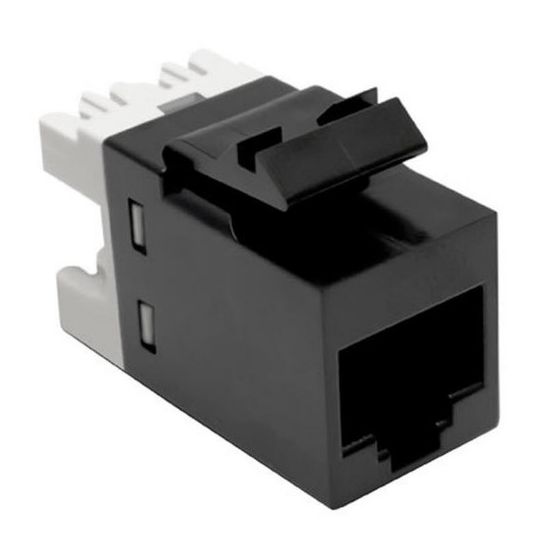

Modular Jack Outlet Mech Cat5e UTP RJ45 T568A/B Black

AMP Netconnect SL Series Modular Jack Outlet Mechanism Cat5e UTP RJ45 T568A/B Black

PRODUCT CODE:
AMP1375191-2

Std Pack Size
1
OUR P/N:
AMP1375191-2

You need to be registered and logged in to view product details and pricing

Modular Jack Outlet Mechanism Cat5e UTP RJ45, 150 Volt AC, Solid, Stranded, Solid: 24-22 AWG, Stranded: 26-24 AWG, RJ45 Connector, Cat5e UTP Cable, 89 N Plug Retention Force, IDC Termination, Wiring Scheme: T568A/B, 1.27 um Contact Plating Thickness, 1.6mm Panel Thickness, Flammability: UL 94 V-0, Polycarbonate Housing, Beryllium Copper Contact Base, Gold Contact Plating, Black,-40 to 70 deg C, 16.26mm Height, 14.48mm Width, 30.48mm Depth

Additional Information

Additional Information
Brand AMP Netconnect
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product 1375191-2
Contact Plating Material Gold
Height 16.26mm
Termination Type IDC
Temperature -40 to 70 deg C
Voltage 150 Volt AC
Product Type Modular Jacks
Connector RJ45
Conductor Size Solid: 24-22 AWG/Stranded: 26-24 AWG
Width 14.48mm
Contact Base Material Beryllium Copper
Colour Black
Depth 30.48mm
Flammability UL 94 V-0
Wiring Scheme T568A/B
Cable Type Cat5e UTP
Housing Material Polycarbonate
